RK17F
17mm Size Insulated Shaft ROTARY POTENTIOMETERS
FEATURE‧Dimmer, TV and audio products and general purpose as well.
APPLICATIONS
‧ Dimmer, TV set, radio, stereo equipment etc.

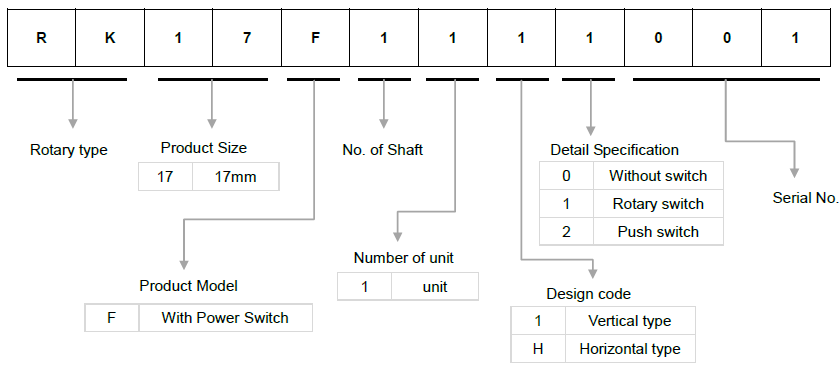

Introduction

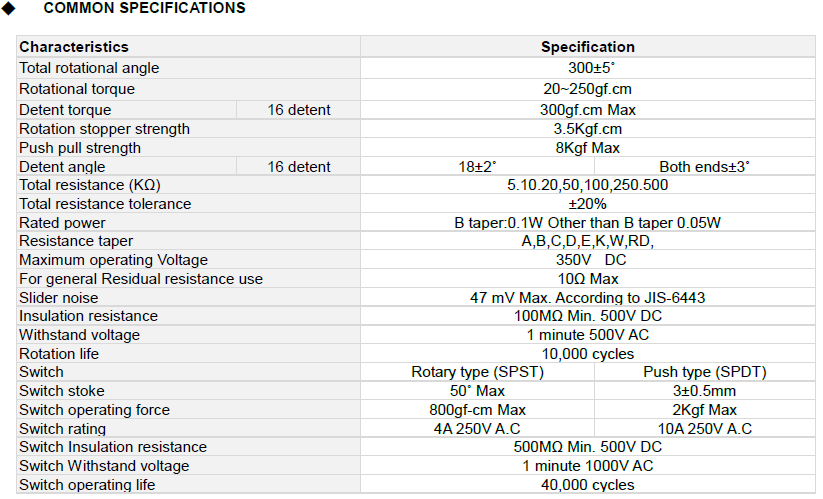

COMMON SPECIFICATIONS

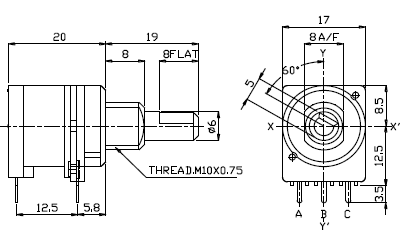

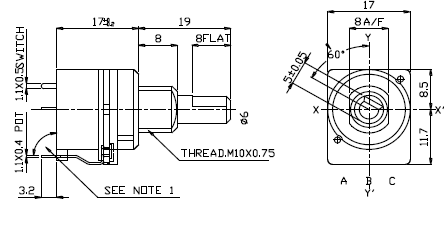

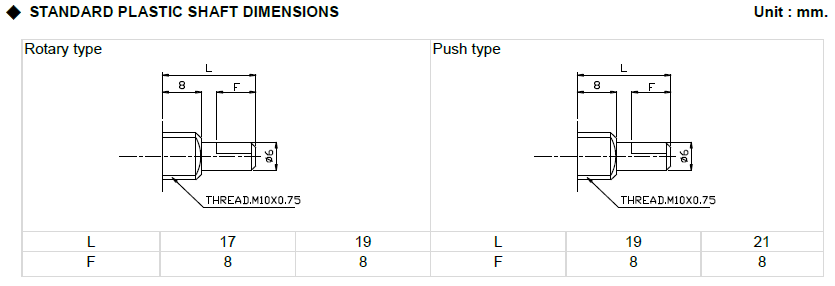

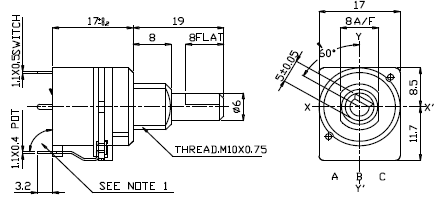

DIMENSIONS
Unit:mm
| Model | Dimensions | |
|---|---|---|
RK17F SERIES |  | |
| PC board t=1.0 or 1.6mm Mounting Dimension | Circuit Diagram | |
 |  | |
RK17F SERIES |  | |
| PC board t=1.0 or 1.6mm Mounting Dimension | Circuit Diagram | |
 |  | |
RK17F SERIES |  | |
| PC board t=1.0 or 1.6mm Mounting Dimension | Circuit Diagram | |
 |  | |
