SPEC
DIP Vertical Type, PUSH SWITCH
FEATURE‧2.5mm travel
‧12.5mm in lever height from P.C.B
‧support 2 poles
APPLICATIONS
‧Audio system,TV,Mixer
‧consumer electronics products,industrial electronic equipments.
Introduction

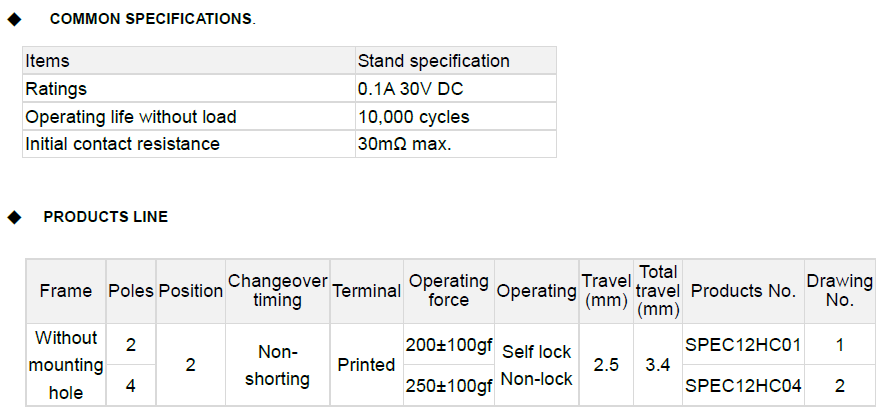

COMMON SPECIFICATIONS

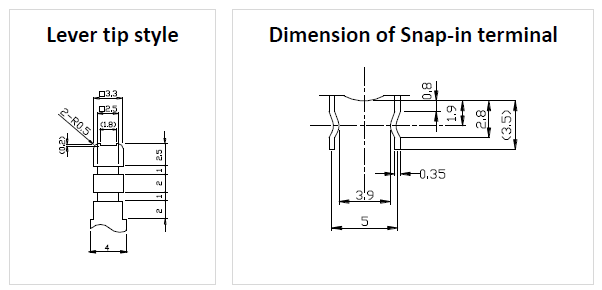

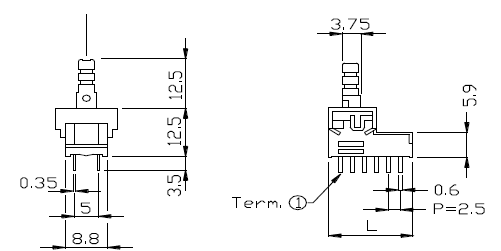

DIMENSIONS
Unit:mm
| Model | Dimensions | |
|---|---|---|
SPEC SERIES |  | |
| PC board t=1.0 or 1.6mm Mounting Dimension | Circuit Diagram | |
 |  | |
