DC15U
15mm Magnetic Type Encoder with LED
FEATURE
‧Non-contact Magnetic Structure.‧Encoder With R.G.B LED Available.
‧Operating life: 5,000,000 cycles.
APPLICATIONS
‧All kinds of level control, tuning and timer setting in audio-visual equipment, ordinary household electric appliances, radio equipment, Industry equipment, etc.
Introduction

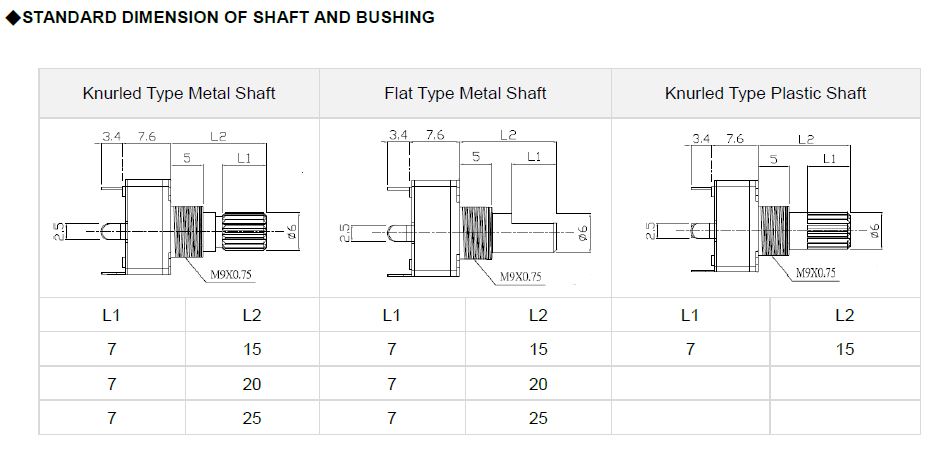

◆DIMENSION Unit：mm
| Model | Dimensions |
| DC15U15218KM Metal Shaft with RGB LED vertical type  |  |
| DC15U15218TM Plastic Shaft with RGB LED vertical type  |  |
| DC15U15218KZ Metal Shaft vertical type  |  |
| DC15U15218FZ Metal Shaft vertical type  |  |
