SFK(N)HHA
SFK(N)HHA
DIP VERTICAL Type, 高度 4.3mm、5mm、5.6mm、6mm、7mm、8mm、9.5mm&11mm.
/ TV / Monitor / Game Player / Instrument
‧6x6mm, surface mounting type.
‧Optional ground pin.
‧Reflow solderable.
APPLICATIONS
‧ For Audio、OA equipment、Instrumentation、Communication、White goods etc.
Introduction
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|---|
| Operating temperature range | -20℃ to +70℃ |
| Operating force | 100、160、260gf |
| Travel | 0.25mm |
| Dimension | 6 * 6mm |
| Operating life | 100,000 cycles |
| Stopper strength | 3 Kgf / 60 sec |
| Maximum ratings | DC12V 50mA |
| Insulation resistance | 100MΩ min |
| Voltage proof | 1 minute 250V AC |
DIMENSIONS
Unit:mm

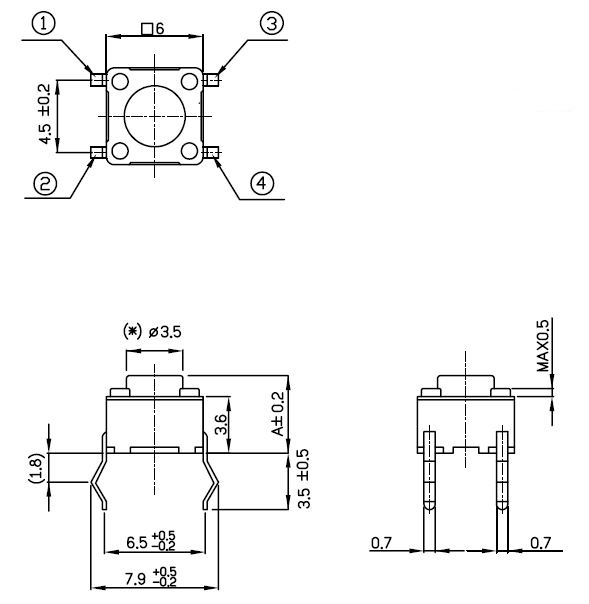

SFKHHAA DIP VERTICAL SERIES |  | |
| PC board t=1.0 or 1.6mm Mounting Dimension | Circuit Diagram | |
 | .JPG) | |

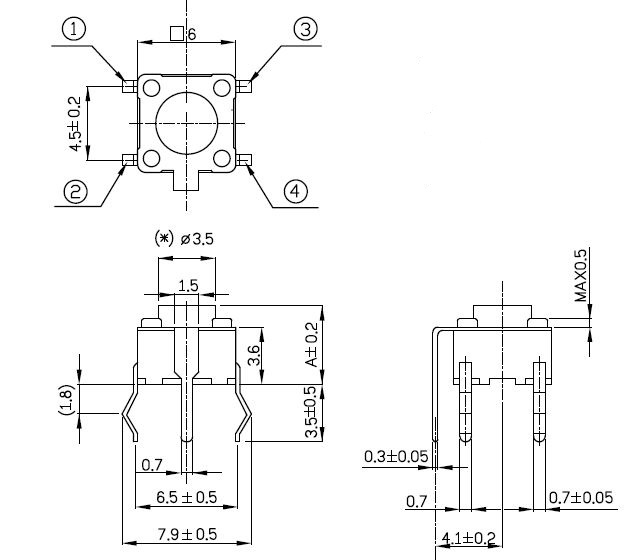

| SFKHHPA DIP VERTICAL WITH GROUND SERIES  |  | |

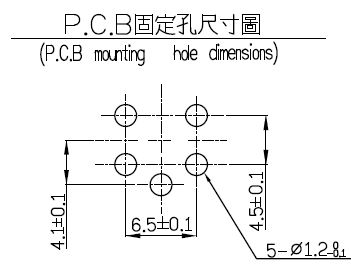

| PC board t=1.0 or 1.6mm Mounting Dimension | Circuit Diagram | |
 | | |
