SFK(N)HMMQ
SFK(N)HMMQ
SMT VERTICAL Type, 多種高度
2.0mm、2.5mm、3.1mm.
‧6.2x6.0mm, surface mounting type.
‧Optional ground pin.
‧Reflow solderable.
APPLICATIONS
‧ For Audio、OA equipment、Instrumentation、Communication、Consumer electronics etc.
Introduction
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|---|
| Operating temperature range | -20℃ to +70℃ |
| Operating force | 100、160、260gf |
| Travel | 0.25mm |
| Dimension | 6.2 * 6.0mm |
| Operating life | 1,000,000 cycles |
| Stopper strength | 3 Kgf / 60 sec |
| Maximum ratings | DC12V 50mA |
| Insulation resistance | 100MΩ min |
| Voltage proof | 1 minute 250V AC |
DIMENSIONS
Unit:mm
| Model | Dimensions | |
|---|---|---|
| SFKHMMQ SMT VERTICAL WITH GROUND SERIES  |  | |

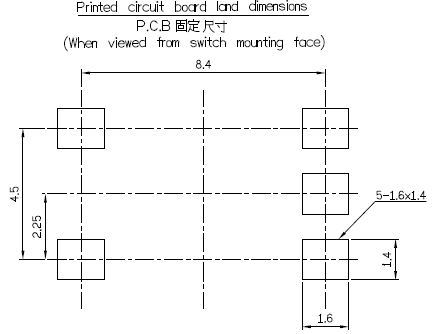

| PC board t=1.0 or 1.6mm Mounting Dimension | Circuit Diagram | |
 |  | |
