RFXXZM
Long Life Rail Master With Motor Type SLIDE POTENTIOMETERS
FEATURE‧ Programmable Slide Curves
‧ High-Sensitivity Touch Sensing
‧ Precise Sliding Control
‧ High Operating Durability (1,000,000 Cycles)
APPLICATIONS
‧ Professional Lighting and Audio Control Equipment
‧ Master Volume Control for High-End Audio Equipment
‧ Fader Control for Professional Audio Mixers
Introduction
COMMON SPECIFICATIONS
| Characteristics | Specification |
| Operating temperature range | -10℃ to +70℃ |
| Total resistance (KΩ) | 5、10、20 、50 、100 、250 、 500 |
| Total resistance tolerance | ±20% |
| Resistance taper | A、B、C |
| Operating force | 50 gf max |
| Sliding service life | 1,000,000 cycles |
| Rated voltage | 10V D.C |
| Operating supply voltage range | 6～11V D.C. |
| Maximum current | 800mA max |
PRODUCTS NUMBERING SYSTEM
.JPG)
LEVER TYPES

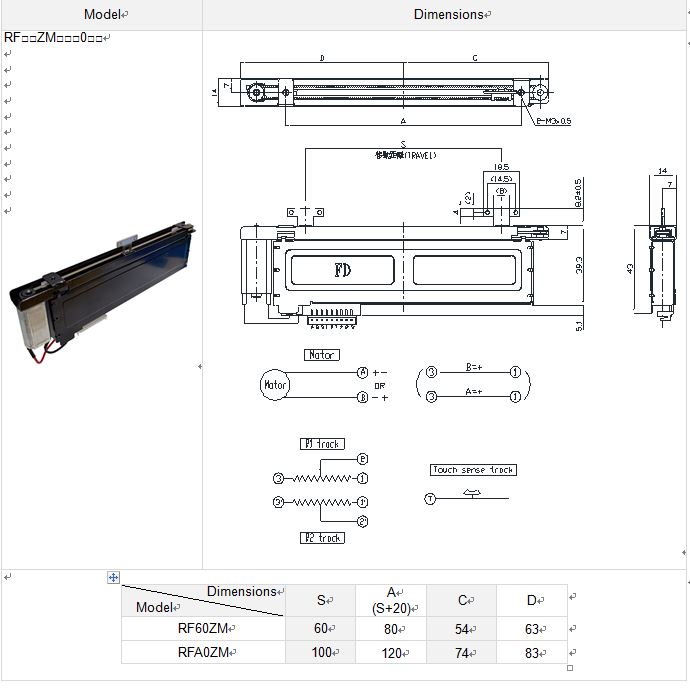

DIMENSIONS
Unit:mm.JPG)
.JPG)
