產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
| Operating temperature range | -10℃ to +70℃ |
| Input voltage | 5V±3% |
| Output type | Voltage(absolute) |
| Output characteristic | X type (Refer from Position-Voltage plot below) |
| Output error | 3%(MAX) |
| Stroke resolution | 5 points/mm |
| Operating force | 20 gf max |
| Sliding service life | 5,000,000 cycles |

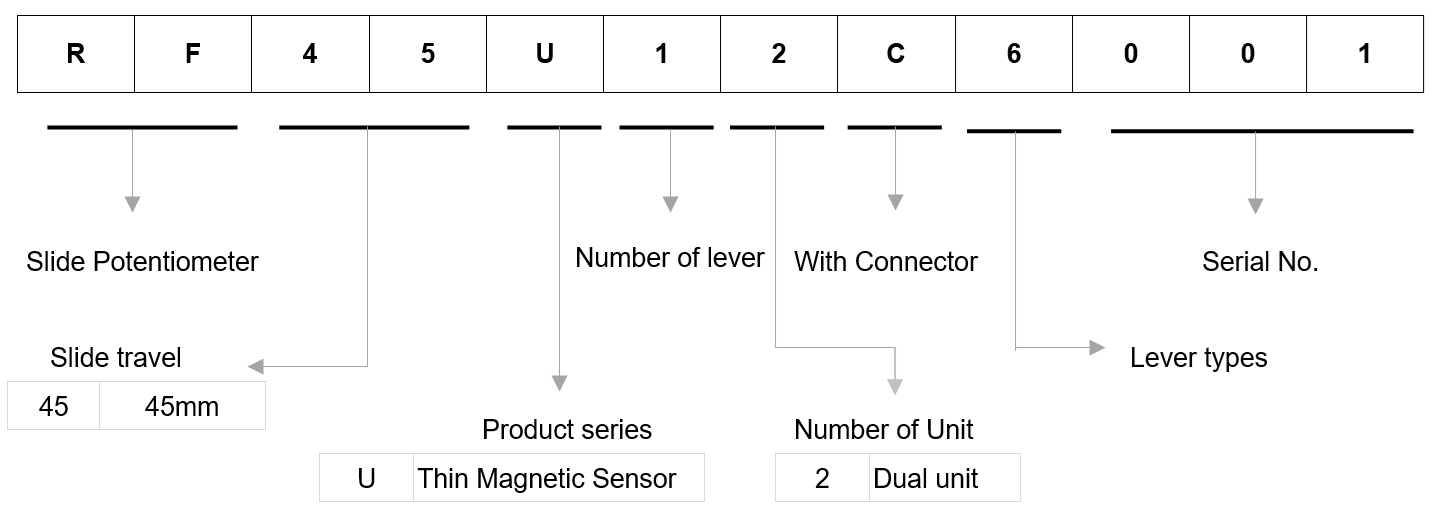

PRODUCTS NUMBERING SYSTEM
.png)
LEVER TYPES

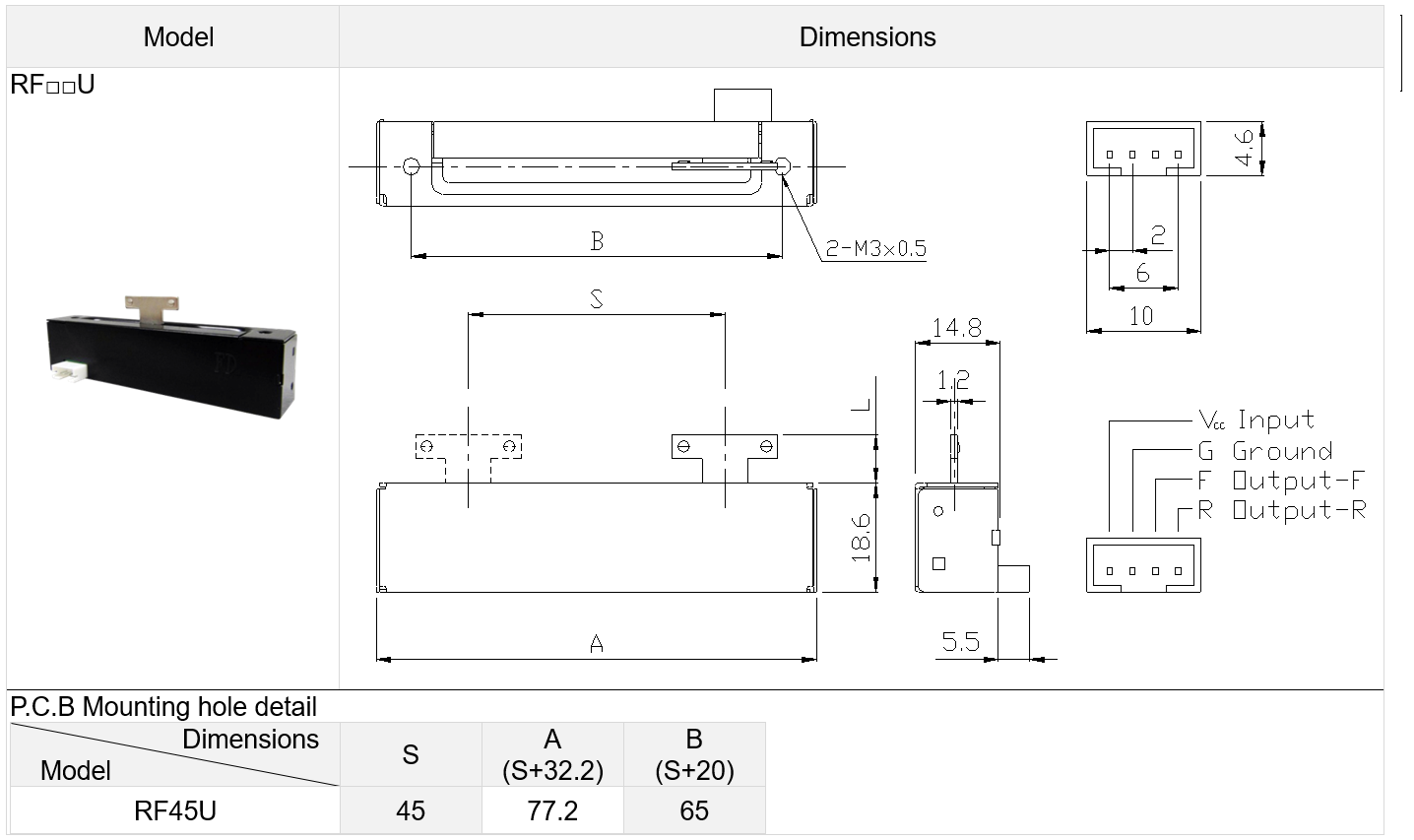

DIMENSIONS
.png)
Unit:mm
