產品說明
COMMON SPECIFICATIONS
| Characteristics | Specification |
|---|---|
| Operating temperature range | -20℃ to +70℃ |
| Operating force | 100、160、240、330gf |
| Travel | 0.3~0.6mm |
| Dimension | 6.2 *6.2mm |
| Operating life | 200,000 cycles |
| Stopper strength | 3 Kgf / 60 sec |
| Maximum ratings | DC12V 50mA |
| Insulation resistance | 100MΩ min |
| Voltage proof | 1 minute 250V AC |

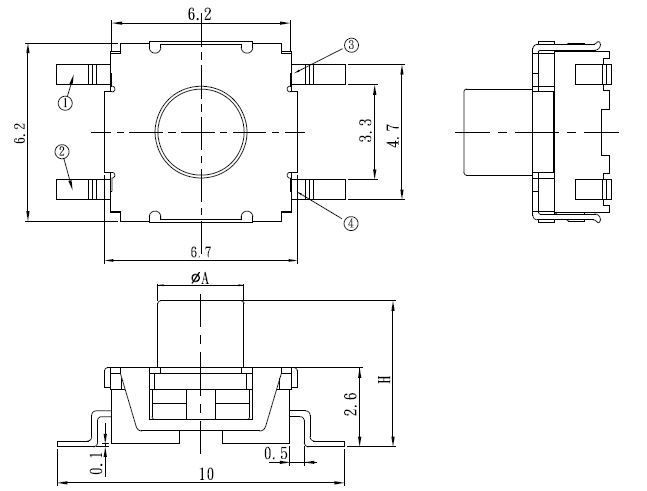

DIMENSIONS
Unit:mm
| SFKRAMJ SMT VERTICAL J TYPE SERIES  |  | |
| PC board t=1.0 or 1.6mm Mounting Dimension | Circuit Diagram | |
 | .JPG) | |
| SFKRAMG SMT VERTICAL G TYPE SERIES  |  | |
| PC board t=1.0 or 1.6mm Mounting Dimension | Circuit Diagram | |
 | | |
