RFXXFM

薄型高壽命主控式附馬達滑動式可變電阻器


FEATURE
‧Programmable and precise slide pattern.
‧Touch sensitive lever which enables fader to the slightest physical contact

APPLICATIONS
‧ Master volume control in high-grade
audio equipment fader for studio mixer, etc.
檔案下載 返回上一頁

產品說明

COMMON SPECIFICATIONS

CharacteristicsSpecification
Operating temperature range-10℃  to  +70℃
Operating force10 ~ 60 gf
Total resistance (KΩ)10、20 、50 、100 、250 、 500
Total resistance tolerance±20%
Resistance taperA,B,C
Insulation resistance100MΩ min. 250V DC
Sliding service life500,000 cycles
Rated voltage5V D.C
Maximum current400～800mA



LEVER TYPES

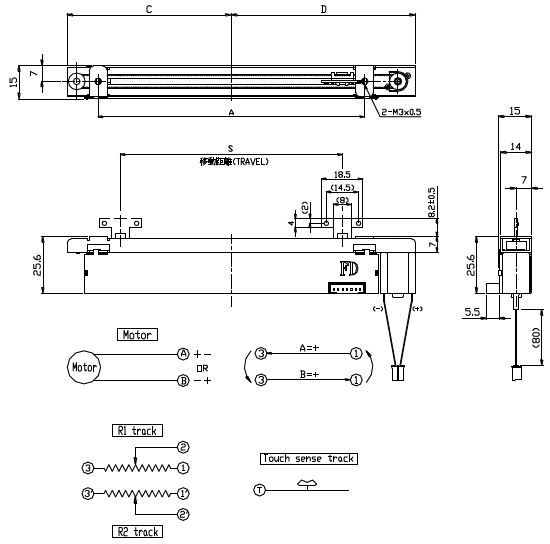

DIMENSIONS

Unit:mm
RF□□FM
